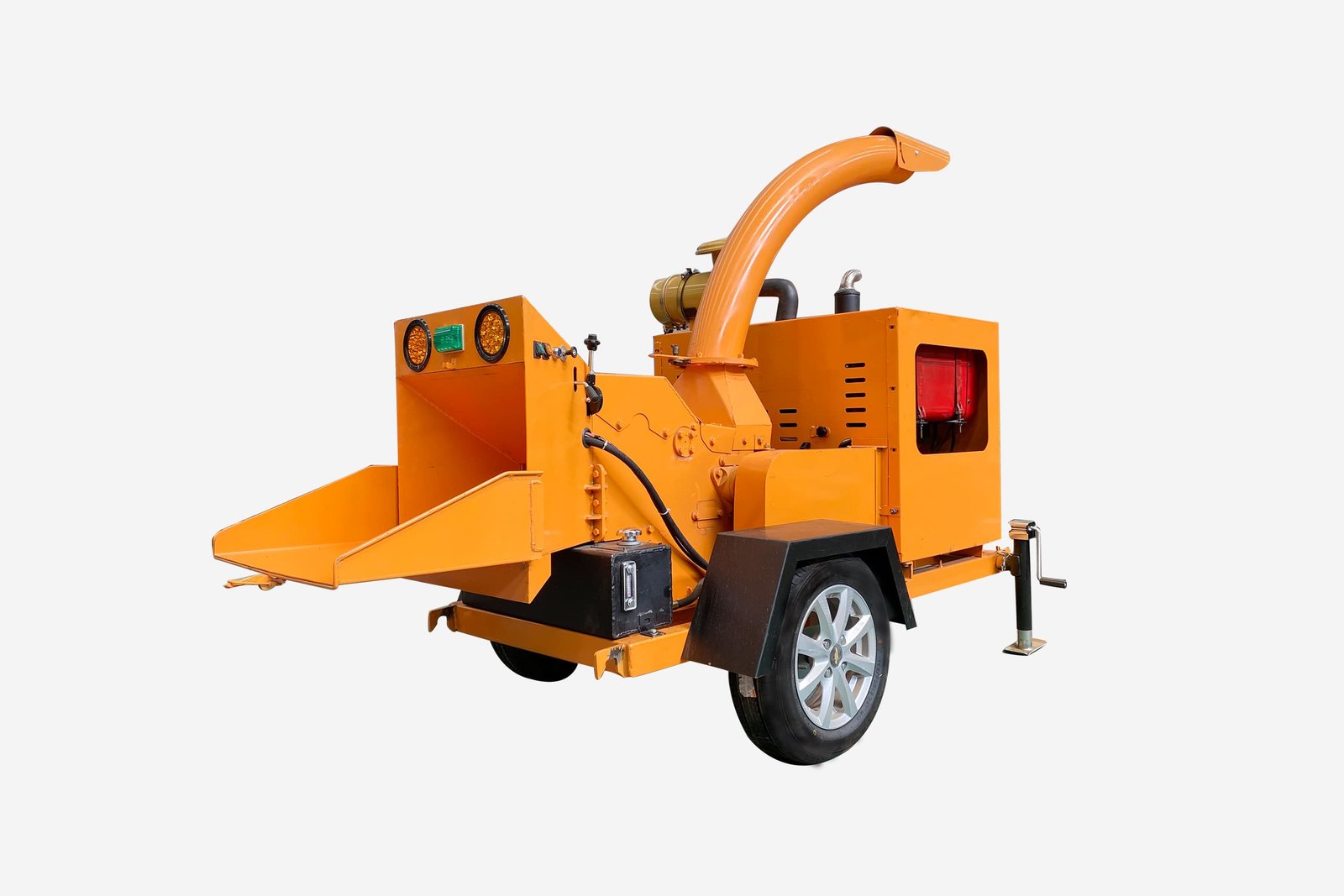

TIROX 1063 Professional Wood Chipper
Conquer tough branches with powerful 129HP output, Effortlessly process 30cm diameter branches, simplifying your cleanup.
TIROX 1063 Professional Wood Chipper (1063)
Engineered for high-volume municipal waste processing and plantation maintenance, this 129HP mobile unit combines Weichai/Cummins engine reliability with smart load-sensing technology. Its 470×430mm feed opening handles whole tree crowns while the ISO-17806-compliant cutting system delivers uniform chips for biomass fuel production. Customize with optional tracks for swamp forestry operations or steep terrain adaptation.
· Max. input dia.: 12 inches (300mm)
· Engine: Weichai 129 HP Diesel
· Capacity: 5 – 6 ton/hour
Local service
Only 30% of Vermeer Price
Manufacturer based in China
Engineered for Value, Parameters for Your Confidence
| Parameter Items | TIROX ZSYL - 1063 - 129HP - WEICHAI |
|---|---|
| Core Power | |
| Engine Brand / Power | Weichai 129 HP Diesel |
| Engine Model (for reference) | WP4.1D95E201 |
| Number of Engine Cylinders | 4 cylinders |
| Starting Method | Electric start (24V) |
| Fuel Tank Capacity | Approximately 80 - 100L |
| Processing Capacity | |
| Maximum Processing Diameter | 12 inches (300mm) |
| Production Capacity (Approx.) | 5 - 6 tons/hour |
| Feed Inlet Size (Approx.) | 450 x 350mm |
| Cutting System | |
| Cutting Structure | Drum - type |
| Drum Size (Approx.) | Φ630mm x 600mm |
| Cutting Blades | 6 moving blades + 1 fixed blade |
| Drum Rotation Speed | 2200 rpm |
| Feeding System | |
| Feeding Method | Hydraulic forced feeding (horizontal roller) |
| Intelligent Feeding Control (Anti - Blocking) | (Smart Feeding System) |
| Feeding Speed Control | 10 - speed manual control & automatic mode |
| Convenience and Features | |
| Hydraulic Oil Tank | 60L |
| Discharge Pipe Rotation | 360 degrees |
| Lubrication Method | Semi - automatic centralized lubrication |
| Chassis (Standard) | 2 - wheel towed |
| Optional Configurations | Crawler - type |
| Optional Configurations | Road worthy configuration |
| Optional Configurations | Feeding conveyor belt |
| Estimated EXW Price | 9000~12000 USD (Price varies by configuration) |
Engineered for Your Toughest Jobs

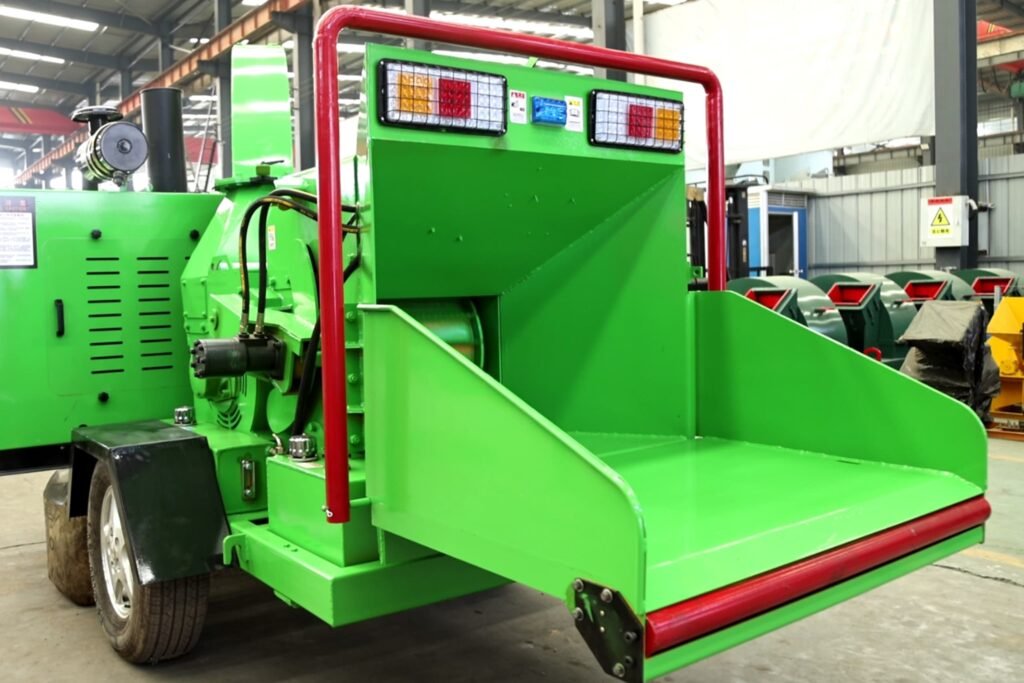

Easily adjust feeding speed for different material sizes with our hydraulic system, ensuring better performance and higher output.

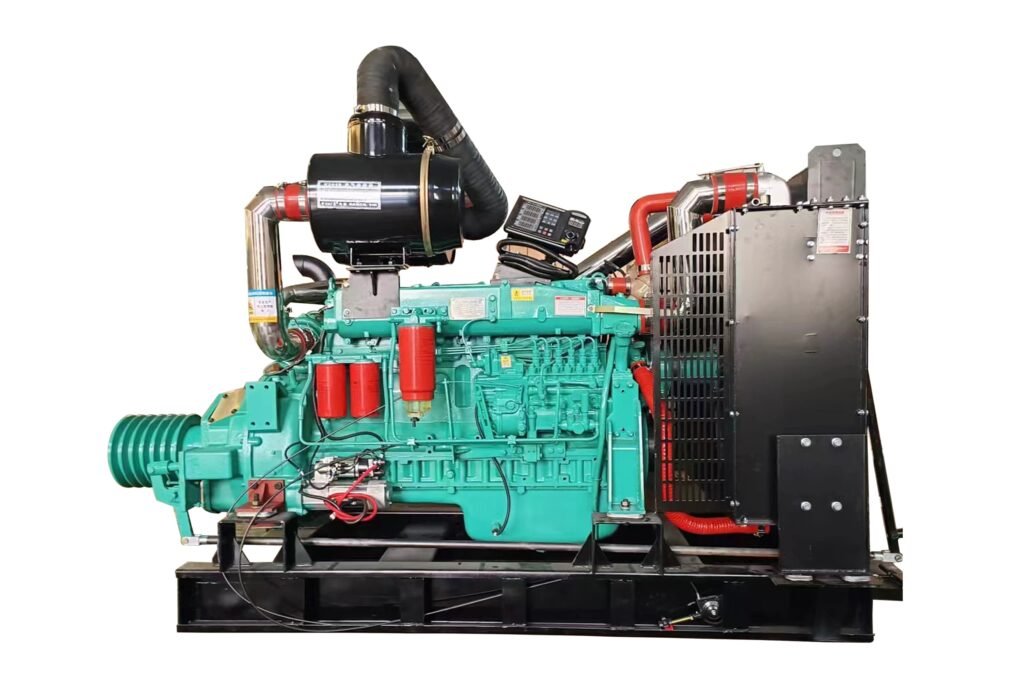

Choose from quality Chinese engines or trusted brands like Cummins and Perkins, making parts replacement and maintenance hassle-free.

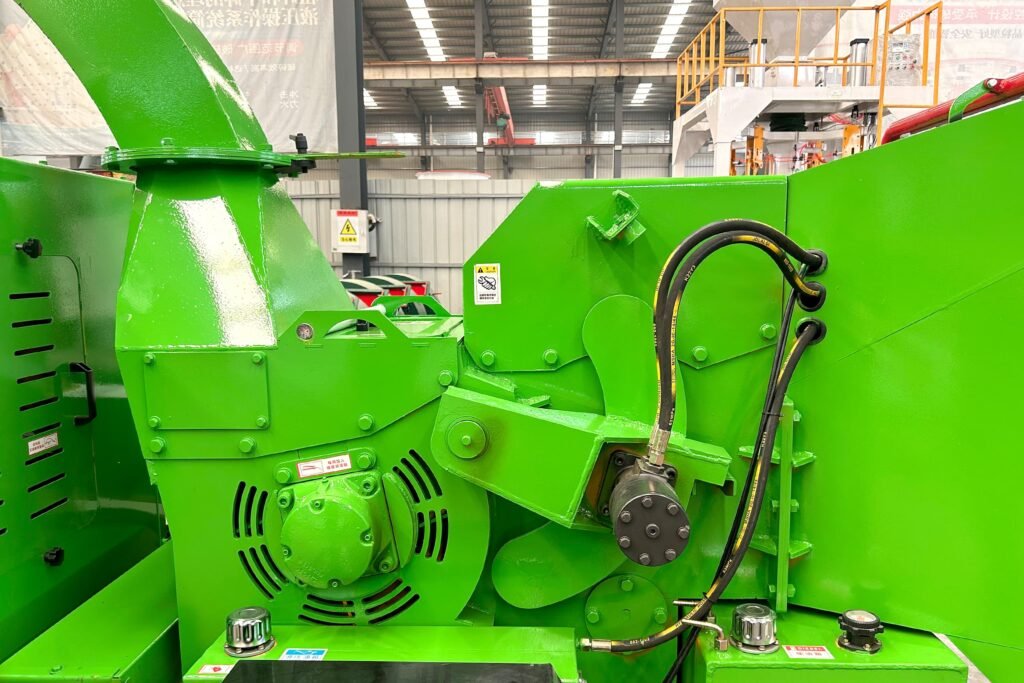

Real-time load monitoring automatically adjusts feed speed or stops feeding, preventing blockages and ensuring smooth operation.

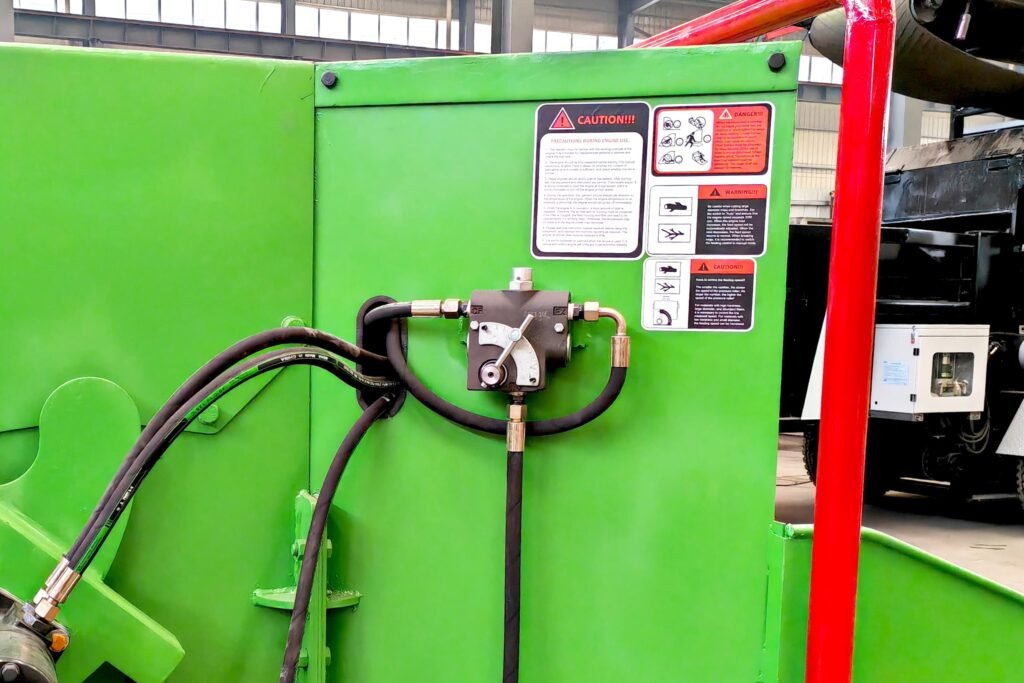

Intuitive control levers manage forward, reverse, and stop functions easily—protecting the blades and engine during blockages.

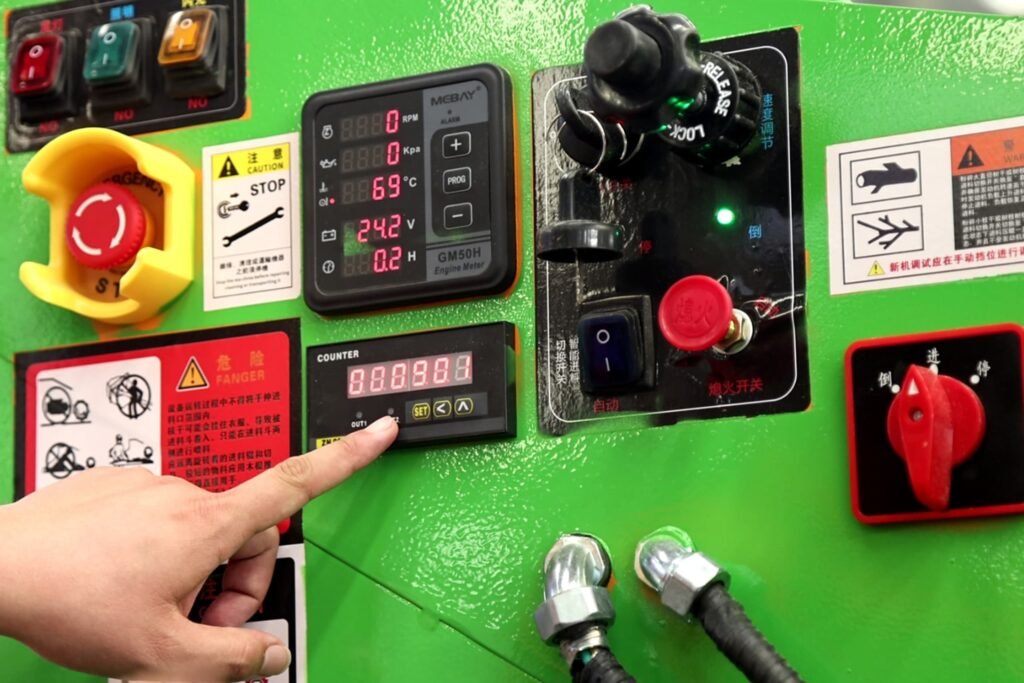

Monitor oil level, water temperature, and run time at a glance, helping you catch issues early and reduce maintenance.

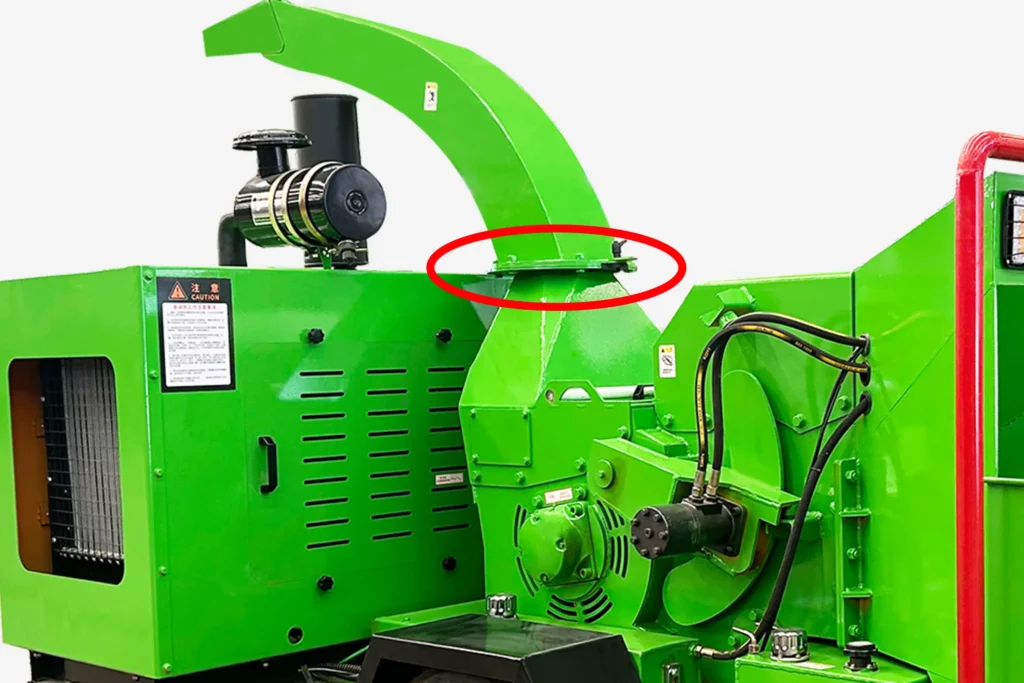

360° directional discharge with jet distance up to 2.5m. Easy for both direct unloading and loading into transport vehicles.
Your Questions Answered
Have questions about doing business with Tirox? We answer a range of common questions from businesses like yours.
A: With its powerful engine and 12-inch capacity, you can expect a production rate of around 8-15 tons per hour, depending on the material. We engineer it to handle continuous, heavy-duty work, making it a reliable machine for your business operations.
A: Our intelligent feeding system is a game-changer for productivity. It automatically monitors the engine's RPM and adjusts the speed of the feed rollers accordingly. This prevents engine bog-down, eliminates jams, and allows your crew to focus on loading wood, not managing the machine.
A: While our chipper is incredibly tough, we strongly advise against feeding it material with nails and metal. Doing so can cause premature damage to the blades. If processing pallets is a big part of your job, let's discuss it—we have other solutions like shredders or grinders that are specifically designed for that challenge.
A: Yes. While this is a high-production machine, you can adjust the final chip size. By changing the gap between the rotor blades and the anvil (or "bed knife"), you can produce a finer or coarser chip to meet specific requirements, like for biomass fuel or playground mulch.
A: We offer a range of powerful and reliable diesel engine options to fit your needs and local emission standards. We can discuss the horsepower and brand that best fits your operational intensity and budget to ensure you get the best performance and value.
A: We build them for tough environments. The chipper is constructed with a heavy-gauge steel frame, robust components, and an industrial-grade powertrain. We know our customers work in demanding conditions, so we engineer our machines for maximum uptime and a long service life.
A: We understand that concern. That's why we've focused exclusively on international markets for over 12 years and export to 87 countries. Our machines are built to meet or exceed international standards like CE for safety and quality. We welcome you to visit our factory to see our production process firsthand.
A: Absolutely. Forestry contractors, large-scale landscapers, and biomass producers are our core customers. We understand your need for efficiency, reliability, and a strong ROI. We don't just sell you a machine; we provide a solution that makes your business more profitable.
Tirox Equipment Co., Ltd.
Tirox (Zhengzhou) Equipment Co., Ltd. is a professional manufacturer with over 20 years of experience in industrial wood processing and recycling equipment, specializing in wood chippers, horizontal grinders, shredders, and biomass systems for global markets. With products exported to more than 60 countries, in-house manufacturing, strict quality control, and extensive international project experience, Tirox delivers reliable and customized solutions worldwide.
Built to Last with Global Standard Components
Confidence Through Quality
We don’t compromise on core components. The Tirox 1063 wood chipper integrates internationally recognized brands known for reliability and performance, ensuring your investment delivers long-term value.
Our ISO 9001 certified manufacturing facility employs strict quality control and 100% load testing before shipment.
Key Components Include:
Our Global Presence: Moments from Recent Industry Exhibitions

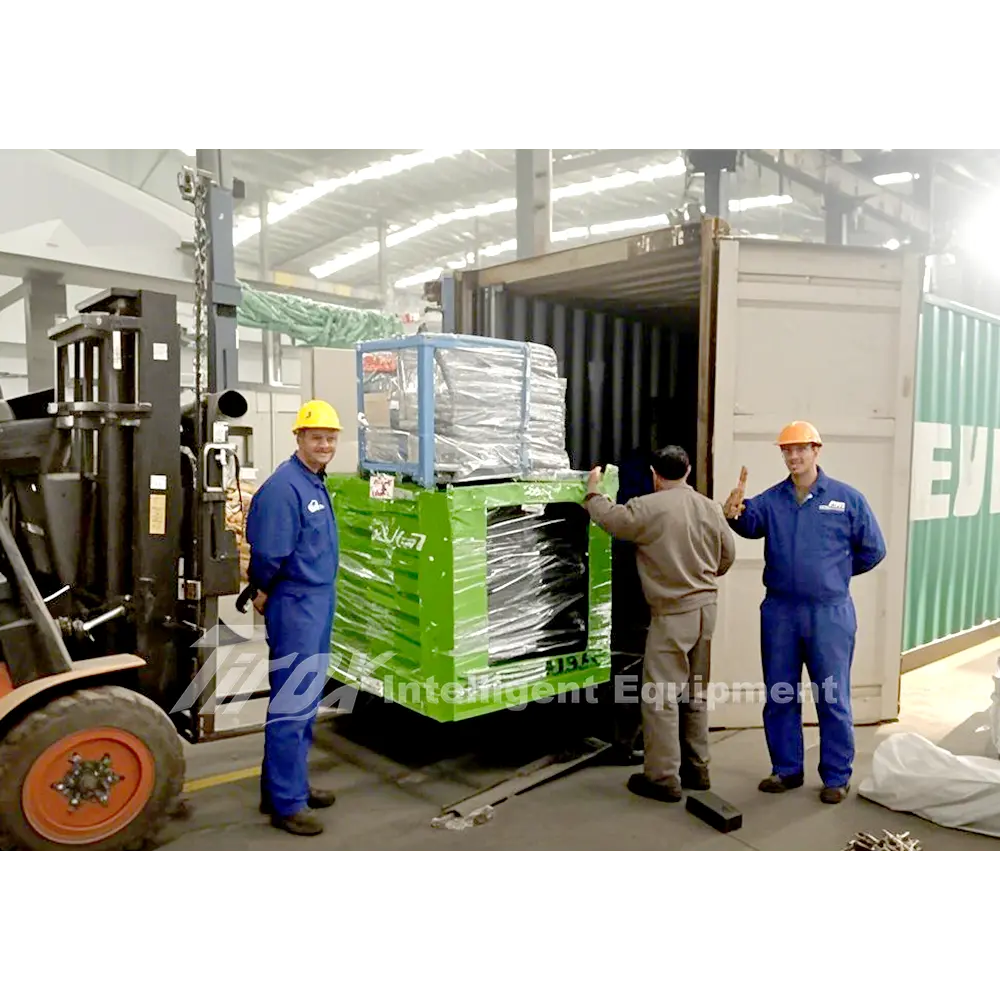

Explore real photos of our manufacturing, packaging, and global exhibitions—showing the strength, quality, and dedication behind every Tirox machine.

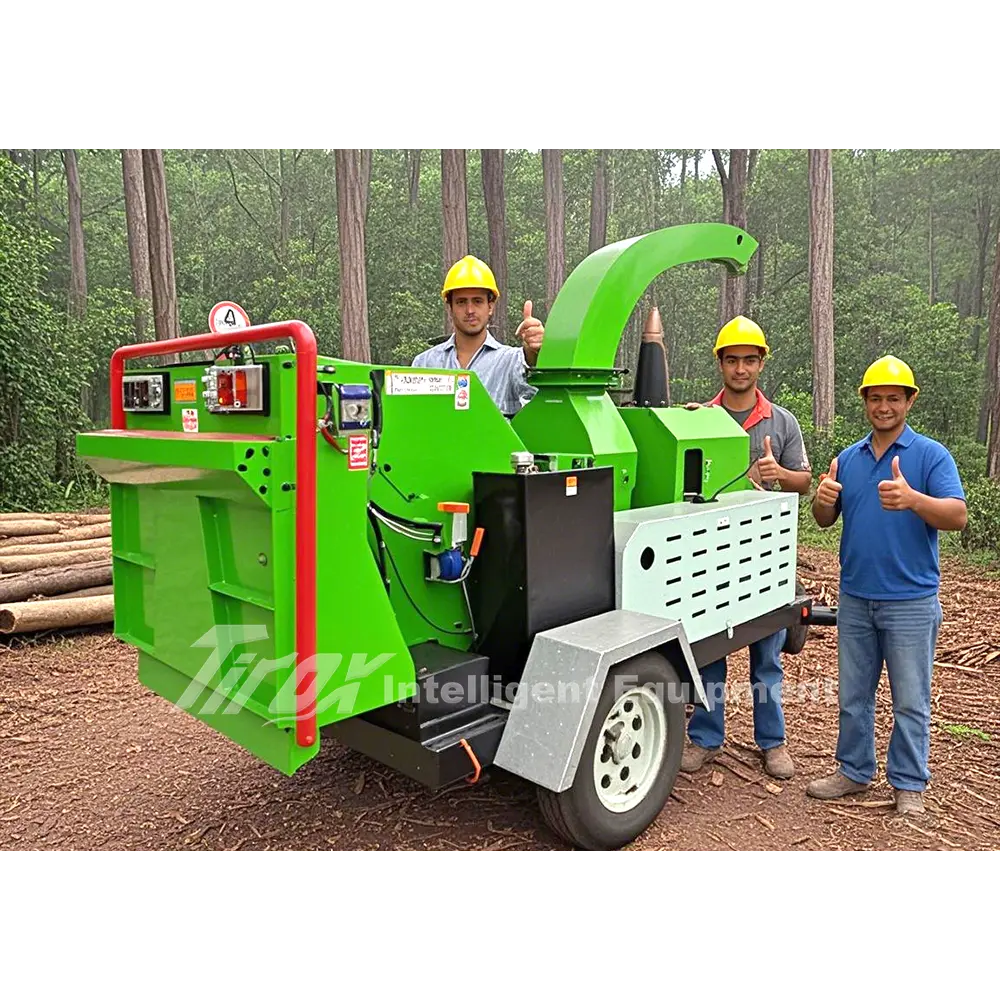

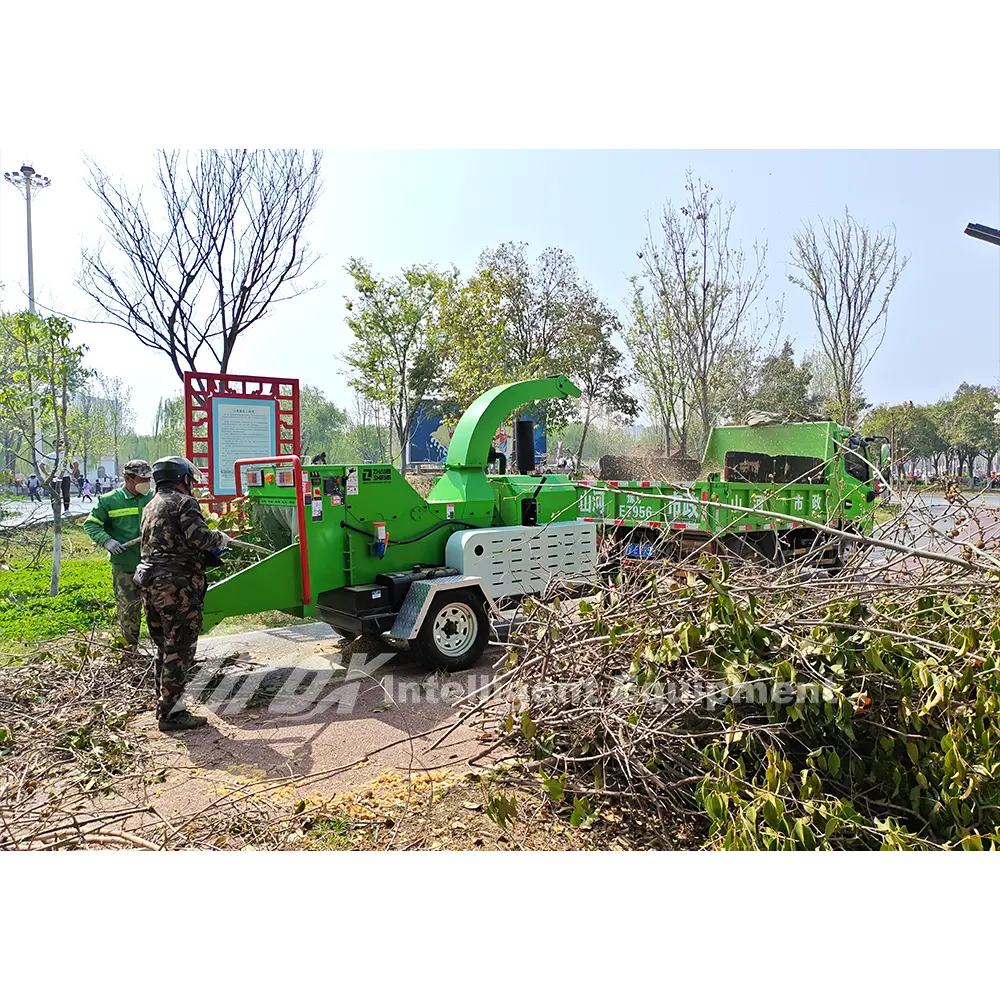

What Tirox 1063 wood chipper Operators Are Saying
Your Partner for the Long Haul
Comprehensive Warranty
Industry-standard 1 Year / 2000 Hour warranty covering major components. Extended options available.
Global Parts Network
Access spare and wear parts through our dealers in 87 countries or direct, expedited factory shipping.
24/7 Multilingual Support
Reach our expert support team anytime, with fluent English-speaking engineers ready to assist.
Local Service Training
We invest in training our international dealer technicians to provide expert local service.
