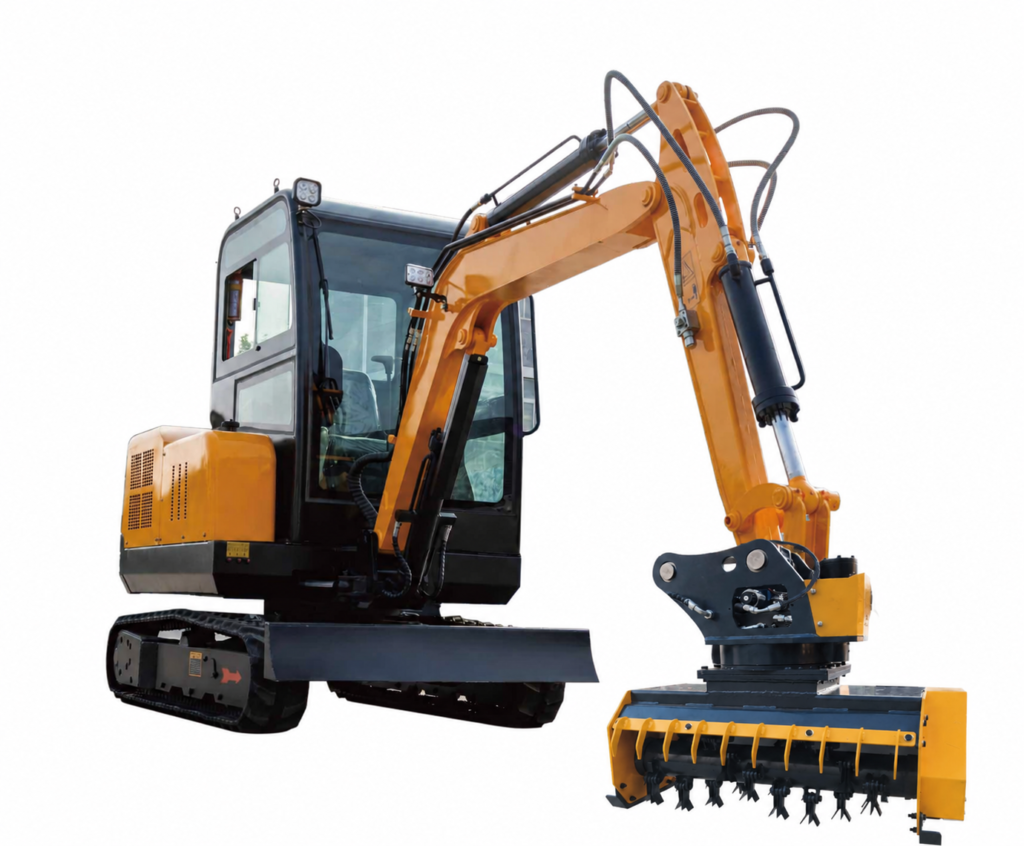

Tirox Mini Excavator

Introducing our new Mini Excavator, a compact and powerful machine engineered specifi-cally for forestry and wildland clearing. Its agile design allows it to navigate dense woodsand rugged terrain inaccessible to larger equipment, making it the ideal choice for creatingtrails, digging irrigation channels, and precise land management.

Tirox Skid Steer Loader

With a 1000mm compact width, 890mm tail turning radius, and 1500kg operating weight, Model 15 excels in narrow access and confined forestry sites. Its quick-hitch system enables fast attachment changes, supporting bucket, grapple, auger, and mower tasks with one versatile machine—ideal for efficient forestry and reclamation work.

· Maximum digging height:: 4938 mm
· Climbing ability: 30°
· Maximum digging depth : 3106 mm

Local service
Manufacturer based in China
Whole Machine Compliant with EU/US Standards

Technical Specs & Details

Item	Model 15	Model 40
Machine size
Total length/transportation length :	2390mm	5029mm
Total width :	1000mm	1720mm
Upper width :	940mm	1554mm
Total height (shed roof/cab roof) :	2290mm	2580mm
Standard track shoe width :	180mm	300mm
Tail turnina radius :	890mm	885mm
Track ground length :	890mm	1645mm
Track length :	1235mm	2150mm
Bulldozer Ground height :	95mm	393mm
Bulldozer digging depth :	220mm	461mm
Operating range
Maximum digging height :	2675mm	4938mm
Maximum unloading height :	1815mm	3376mm
Maximum digging depth :	1710mm	3106mm
Maximum digging distance :	2920mm	5175mm
Minimum radius of turn :	1505mm	2634mm
Max. Height @ Min. Rotation Radius :	2115mm	3716mm
Performance parameter
Operating weight :	1500kg	4000kg
Bucket capacity (m³) :	0.02m³	0.12m³
Climbing ability :	30°	58°

See quality up close: the thoughtful details that drive productivity

Tracked technology heritage since 2017

Built on China's first successfully developed trackedplatform, this mulcher uses widened reinforced tracksand powerful hydraulics, delivering ultra-low groundpressure, high mobility, and stability across forests,slopes, and wetlands.

Power system engineered for the globalmarket

With Koop/Kubota diesel power, you get a fuel-efficient and emissions-compliant engine backed by reliable global support. This ensures maximum uptime for your operations through accessible parts and service, wherever you work.

High-Efficiency Cooling for Durability

An integrated sealed fan and a high-efficiency coolingsystem prevent overheating, ensuring stableperformance during long hours of operation andsignificantly extending the machine's service life.

Robust Design, Worry-Free Operation

A heavy-duty counterweight ensures balanced dig-ging power and stability. The reinforced work equip-ment and frame are built for robust durability, whilethe high-stability four-post canopy guarantees everyoperation is safe and reliable.

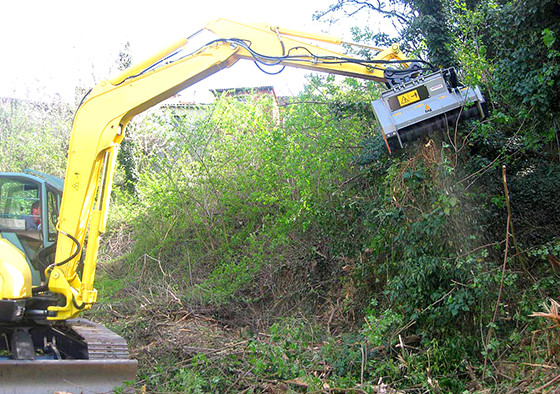

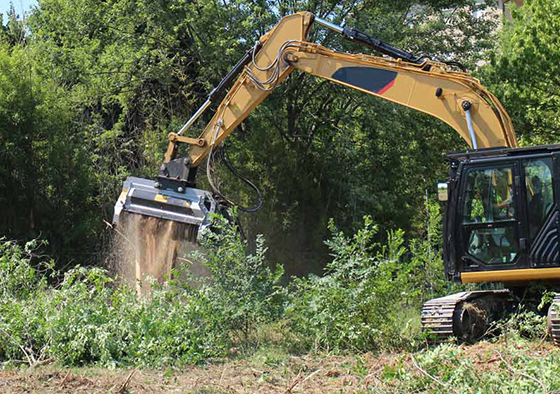

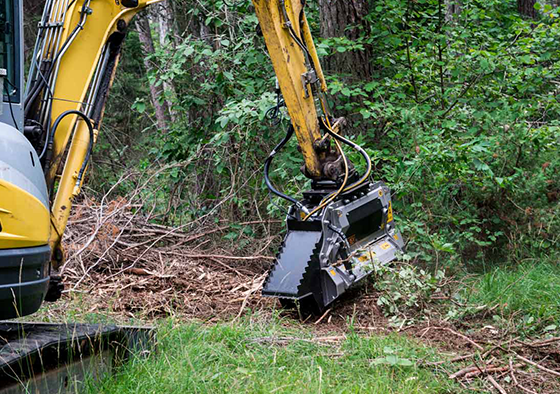

Seamless Switch: From Digging to Forestry Mulching

Thanks to an identical quick-coupler system as the bucket, you can swap attachments in minutes, instantly transforming your excavator into a professional-grade forestry mulcher. Available as a powerful optional attachment, you can invest based on your operational needs, significantly expanding the machine’s versatility and profitability.

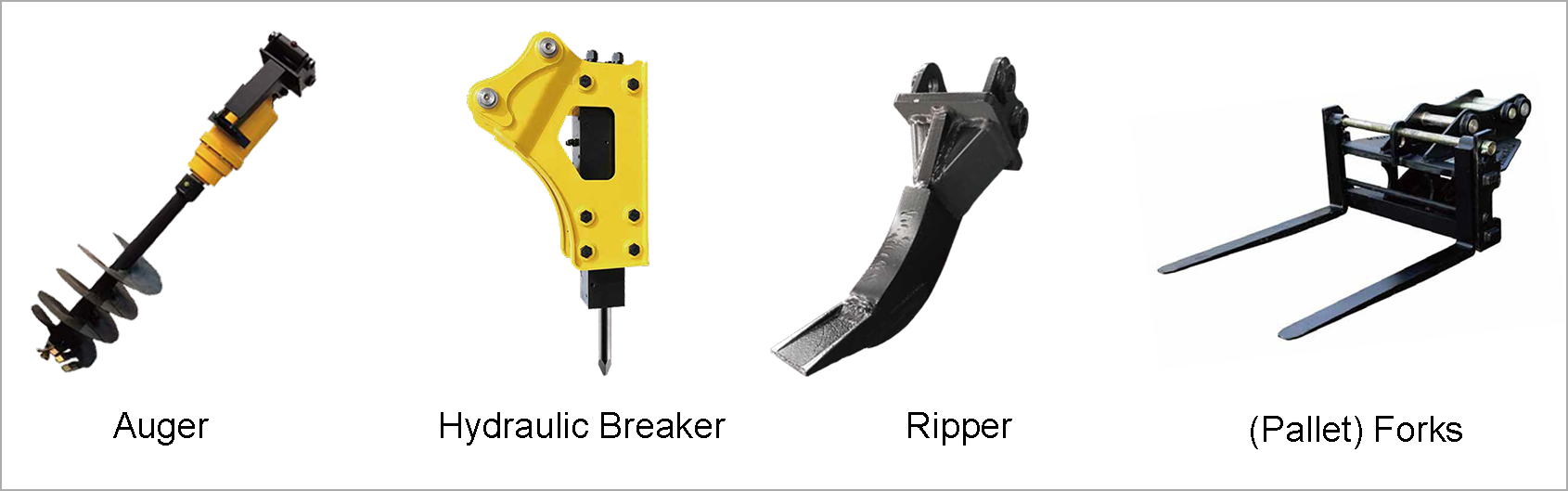

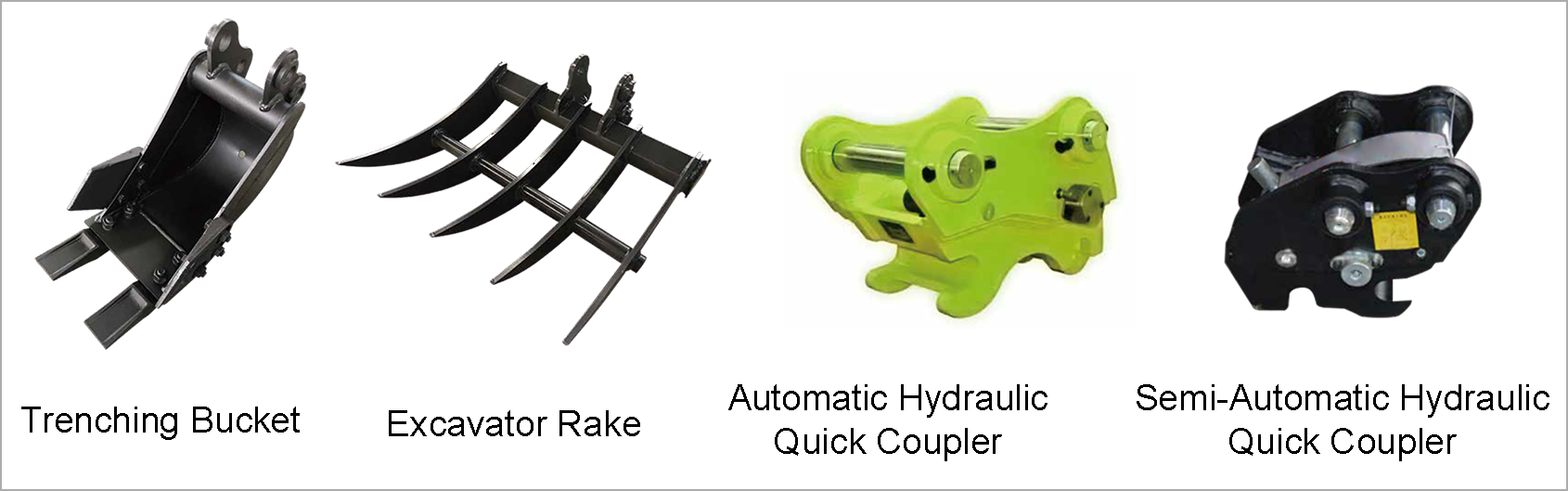

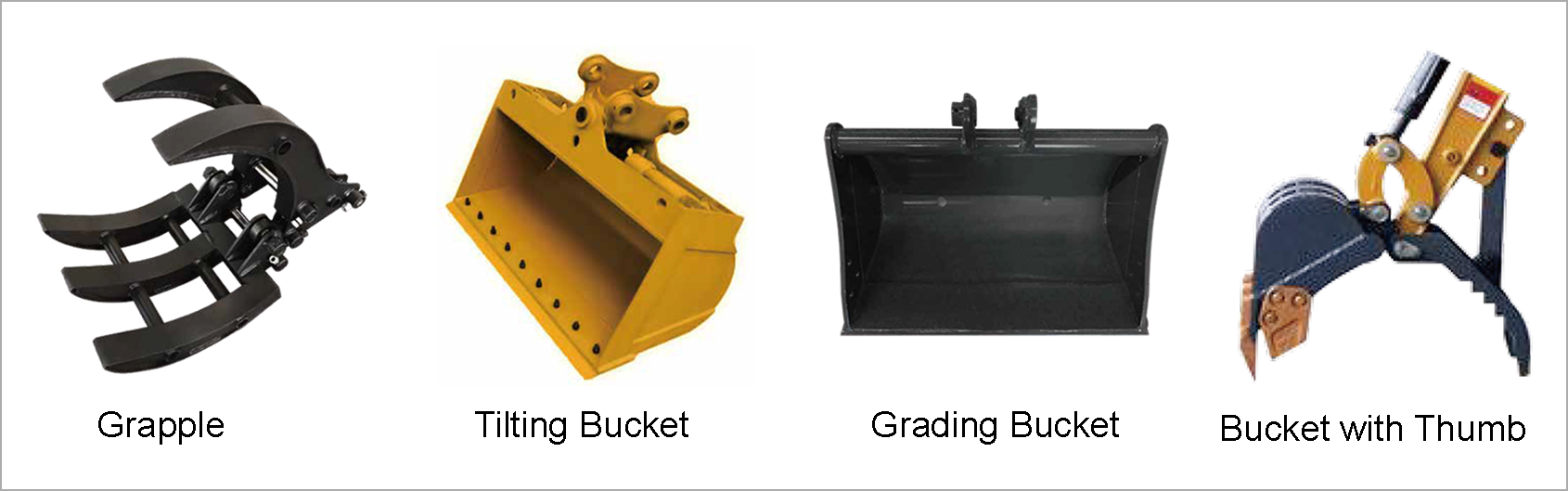

And that’s just the beginning. We offer a full lineup of attachments to ensure you're ready for any challenge

The Powerhouse Behind Tirox: Our Manufacturing Might

Our robust manufacturing facility is the cornerstone of Tirox’s commitment to durability and performance. We focus on creating equipment that withstands the toughest operational demands. Through advanced production techniques and stringent quality checks, we ensure every Tirox machine delivered worldwide is a reliable asset for your business operations, offering long-term stability and efficiency.

What Tirox Equipments Customer Are Saying

“We used this forestry mulcher for three months on reforestation in Minas Gerais, Brazil. It handled dense brush and rocky patches efficiently with minimal clogging and consistent cut quality. Fuel use was low, daily maintenance quick.”

"This forestry mulcher worked two months straight clearingwindthrow in Biobio, Chile. Feeding was smooth, the anti-stallauto-reverse cleared jams, maintenance was worry-free,after-sales support was prompt, and overall value was excellent."

“We maintain interstate slopes. One tracked land‑clearing machine replaced two crews and doubled hourly coverage. GPS auto‑nav cut overlap and fuel use. Operators work safely outside guardrails via 150 m wireless control and one‑touch E‑stop.”

Your Partner for the Long Haul

Built to Last with Global Standard Components

Confidence Through Quality

We don’t compromise on core components. The Tirox Horizontal Grinder integrates internationally recognized brands known for reliability and performance, ensuring your investment delivers long-term value. Our ISO 9001 certified manufacturing facility employs strict quality control and 100% load testing before shipment.

Key Components Include:

Our Global Presence: Moments from Recent Industry Exhibitions

Explore real photos of our manufacturing, packaging, and global exhibitions—showing the strength, quality, and dedication behind every Tirox machine.

Your Questions Answered

Have questions about doing business with Tirox? We answer a range of common questions from businesses like yours.

Q: How does the mulcher perform on steep or hazardous terrain?

A: Our mulcher is engineered for superior stability. Thanks to its low center of gravity and perfect 50/50 weight distribution, it can operate safely on slopes up to 55 degrees. For extreme conditions, you can add optional anti-slip tracks to master muddy, frozen, or snow-covered ground.

Q: What makes the mulcher so efficient in dense vegetation?

A: It’s all about power and coverage. We use a high-performance 56/75 hp Hatz diesel engine for a class-leading power-to-weight ratio. You can also choose a wider 1.9-meter cutting deck, which boosts clearing efficiency by 46% compared to the standard 1.3-meter model.

Q: How do you ensure operator safety during high-risk jobs?

A: Operator safety is our top priority. A 150-meter wireless remote control keeps your operator at a safe distance from cliffs, dense brush, and other dangers. The machine is also equipped with an emergency stop and a 3-second rotor brake, fully complying with ANSI B71.4 safety standards.

Q: How does the mulcher improve efficiency on large-scale projects?

A: We integrate an optional Trimble GPS auto-navigation system that guides the machine with ±25mm precision. This technology eliminates overlapping paths and can increase your overall productivity by over 30% during continuous operation.

Q: Is this machine only for mulching, or can it do more?

A: It's a true multi-tool for year-round work. A quick-change attachment system allows you to easily switch between over 17 tools for brush cutting, stump grinding, chipping, trenching, and even snow plowing.

Q: What about maintenance and after-sales support?

A: We design our machines for reliability and easy maintenance, which is a top concern for buyers. Key features include remote diagnostics and the use of common wearing parts to minimize downtime and control your after-sales costs.

Q: Which countries do you export your equipment to?

A:As a manufacturer exclusively focused on international markets, we have a proven track record of success. Our equipment is trusted by customers in 87 countries worldwide, demonstrating its adaptability to diverse regulations and operating conditions, from the extreme cold of Russia to the humid climate of Indonesia.

Q: How long have you been manufacturing this type of equipment ?

A: While this specific remote-controlled mulcher was launched in 2021, our expertise in land clearing equipment is extensive. We have 22 years of total industry experience and have been producing related machinery like wood chippers and horizontal grinders since 2012, giving us deep experience in this field.
